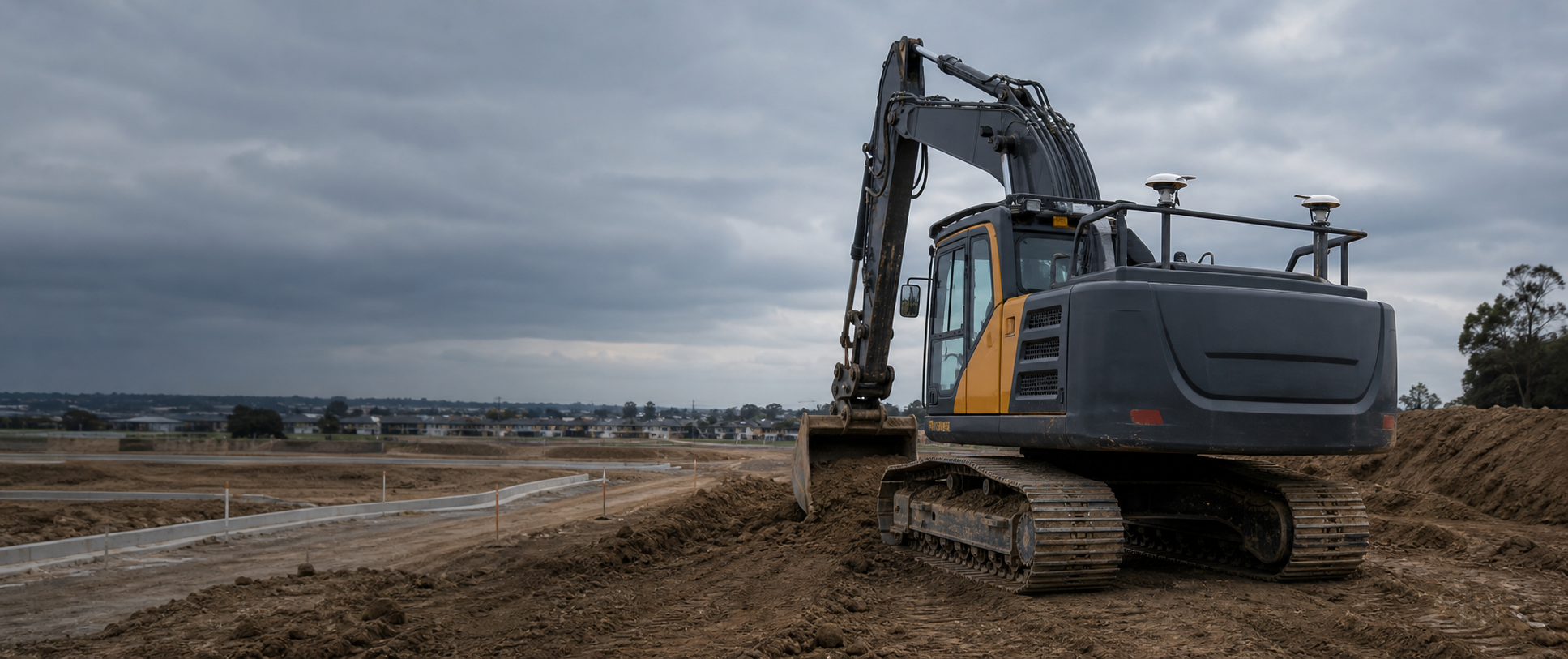

Machine-control modelling
Machine-control models built for confident site delivery.
We prepare 3D site models from supplied design information, giving operators and project teams a clear, coordinated dataset for the work ahead.
Service overview
A practical bridge from design drawings to machinery.
Machine-control modelling converts relevant project geometry and levels into an agreed digital package for civil construction workflows. It can support roadworks, earthworks and other defined site tasks where clear 3D information is required.
Every job is scoped around the supplied design, the limits of work and the intended use. If information is unclear or inconsistent, it is identified for review rather than quietly assumed.
What to send
The information that helps us quote accurately.
Send what you have. We will identify any missing information that affects the proposed scope.
Design drawings
The current issued plans and relevant revisions for the area to be modelled.
Surface information
Available existing and proposed levels, contours or digital surface data.
Work limits
A clear description of the construction area, stages and required model extent.
Intended use
The machinery or site workflow the model needs to support and the required date.
Our process
Clear decisions at each stage.
A straightforward workflow keeps the model aligned with the supplied information and the site requirement.
Review
We check the supplied drawings, data, revision status and model limits.
Confirm
We define the intended use, inclusions, assumptions and agreed outputs.
Build and check
The model is prepared and reviewed against the agreed source information.
Issue
You receive the agreed files together with relevant notes and assumptions.
Agreed deliverables
A model package shaped around its end use.
Depending on the available source information and agreed scope, the delivery package may include:
- 3D surfaces and relevant linework for the defined work area
- Clear model limits, layer organisation and staged content where required
- Export files agreed before the job begins
- Notes covering source information, assumptions and identified queries
Frequently asked questions
Machine-control model FAQs.
What information is needed to prepare a machine-control model?
Send the current design drawings and revisions, available surface or level information, the work limits or stages, and the intended machinery or site workflow.
What can the model package include?
Depending on the source information and agreed scope, it may include 3D surfaces, relevant linework, organised or staged content, agreed export files, and notes on assumptions or queries.
What types of civil work can the models support?
Machine-control models can support roadworks, earthworks and other defined site tasks that require coordinated 3D project information.
How are unclear or inconsistent design inputs handled?
Questions or inconsistencies identified in the supplied information are raised for review rather than being quietly assumed.
Which file formats will be supplied?
The required export files are agreed before work starts so the package suits the nominated site workflow.
Related services
Support the model before and after delivery.
Have drawings ready for a machine-control model?
Send the project location, required date and available files. We will review the information and confirm a practical scope.
